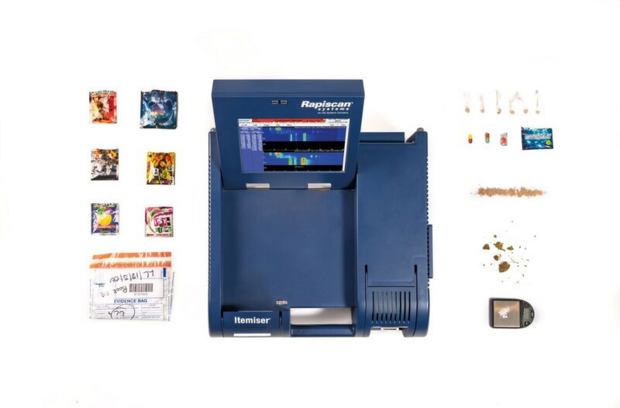

U neemt eenvoudig een uitrijkje en de machine detecteert op aanwezigheid van microscopische deeltjes narcotica en explosieve stoffen. De trace detector is ook een perfecte aanvulling op de bagagescanner.
Tevens toepasbaar voor het controleren van onbekende stoffen / poeders en medicijnen. (Drugscontole op onbekende stoffen, zijn meegebrachte medicijnen inderdaad medicijnen of vermomde drugs)
Enkele toepassingen:
- Evenementen met zero drugs beleid, scannen van medicijnen en onbekende stoffen
- Drugsdetectie voor de topsport
- Ambassades als aanvulling op de bagagescanner
- Vliegvelden springstof en drugsdetectie
- Dakloze opvang, scannen van medicijnen en onbekende stoffen op drugs
- Inchecken bemanning en passagiers op cruiseschepen, detectie van drugs en springstoffen
- TBS klinieken en penitentiaire inrichtingen, drugsdetectie en detectie van explosieve stoffen
- Rechtbanken en high risk locaties controle op explosieve stoffen
- Voor de politie en opsporingsinstanties om straatmonsters van cocaïne te onderzoeken
- Afkick klinieken voor drugsdetectie
Detectie
onder andere van
Cocaïne,
Heroïne (diacetylmorfine) ,
XTC MDMA, Ketamine en Amfetamine (oftewel speed of pep)

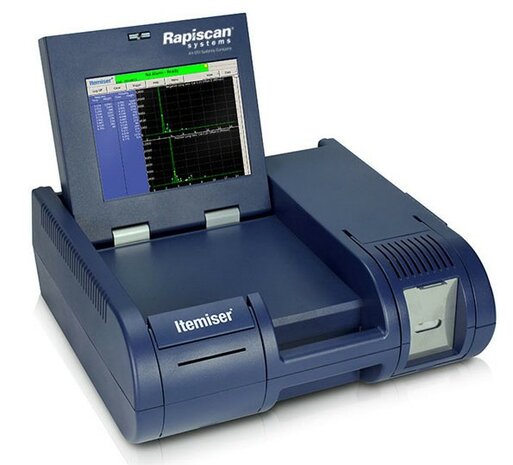

De Rapiscan itemiser 4 DX werkt middels het spectrofotometrie principe, dit houdt in dat er geen gebruik word gemaakt van ioniserende straling. Hierdoor mag het toestel door iedereen gebruikt worden en is er geen vergunning of registratie nodig van het ANVS
| Manufacturer |
Rapiscan Systems |
| Product Name |
Itemiser® Series |
| Detection Category |
Chemical; Explosives |
| Detection Principle |
Spectrometry; |
| Detection Method |
Ion Trap Mobility Spectrometry; |
| Supporting Documentation |
MRIGlobal - Itemiser DX Series.pdf|Rapiscan - Itemiser DX.pdf|Rapiscan systems-itemiser-4dx.pdf| |
| Application |
Emergency Response; Gas Analysis; Screening; Trace Analysis; Bulk Analysis; |
| Product Model Number |
DX, 4DX, 5X |
| Equipment Type |
Instrument |
| Product Synopsis |
The Itemiser® DX will simultaneously detect positive and negative ions. Simultaneous detection enables the Itemiser DX to detect a broad range of explosives. It delivers simultaneous explosives and narcotics detection in a portable package. The Itemiser® 4DX and 5X has a non-radioactive-based explosives and narcotics detector. The 5X model has modified sampling wand, software algorithms, a faster clear down, and the ability to remote monitor. |
| Availability |
Commercially Available |
| Technology Readiness Level (TRL) |
9 |
| User Feedback Sources |
Indifferent/No user feedback |
| Dimensions |
19.8 x 18.9 x 14.9 in (5 x 4.8 x 3.8 cm) Display Clearance 16.3 in (41cm) |
| Weight |
<30 Lbs.; 26.5 Lbs. (12 kg) |
| Power Requirements |
AC/DC Line Power; Standard AC Input: 100 to 120 VAC, 200 to 240 VAC, 47 to 63 Hz, 150 W -DC Input: 11 to 18 VDC input, 10 A (150 W) max |
| Transportability |
Benchtop/Fixed; Small Footprint |
| Ruggedness |
Vibration/Shock; ISTA Procedure 2 which is drop and vibration |
| Operating Conditions |
0 to 40°C (32 to 104°F) ; 0 to 95%RH, non-condensing |
| Consumables |
>$1,000/year; Calibration traps, sample traps, dopants, mesh screens |
| Solvents/Reagents |
Not Applicable |
| Calibration Schedule |
Once per shift or every 8 to10 hours |
| Suggested Routine Maintenance |
10 minutes per week |
| Available Accessories |
Vacuum wand |
| Data Analysis Support Equipment |
PC |
| Communications Interface |
Two USB 2.0 ports, Ethernet port |
| Expected Operational Life |
Indefinite |
| Shelf Life |
>5 years |
| Unit Cost |
$40,000.00 |
| Maintenance Cost |
$2,000 to $2,500 per year |
| Tested For Chemical Agents |
Amenable based on technology |
| Tested For ITF-25 TIC/TIMs |
Amenable based on technology |
| Tested For Explosives |
Yes |
| Tested For Narcotics |
Yes |
| Other Chemical Targets |
Amenable based on technology |
| Tested For Biological Agents |
Not Applicable |
| Other Biological Targets |
Not Applicable |
| Radiological Targets |
Not Applicable |
| Adaptability |
No; cannot detect or add new targets |
| Sample Introduction |
Solid; Liquid |
| Sensitivity/Detection Limits |
ng |
| Start Up Time (From Cold Start To Sample Ready) |
30 minutes |
| Response Time (Sample Application To Output) |
Continuous (<30 seconds); 8 seconds |
| Total Run Time |
30 minutes |
| Alarm Capability |
Audible and visual |
| Software Control |
On-board; PC; Remote |
| Other Operational Parameters |
Not Applicable |
| Training Required |
<1 week training |
| Training Available |
Yes; in-person and online |
